The HATA sample rod system is a new platform with a virtual pivot in design; there is no support frame around the sample rod holder. It can realize double tilt rod combined with detachable sample head, which is easier to connect with FIB, SEM, APT, SIMS, etc.

Technical specifications

Applicable instruments: FEI Tecnai's Sup er Twin series and Titan, JEOL high-angle pole shoe type TEM

X (α) angle maximum tilt range: ± 80 ° (limited by the maximum tilt angle of the sample stage)

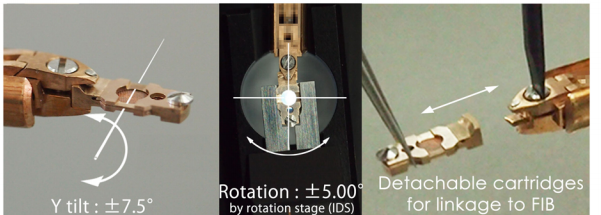

Y (β) angle maximum tilt range: ±7.5 ° (controlled by the β button of the TEM operation panel)

Maximum face center rotation angle range: ±5° (controlled by Mel-Build manual offline precision adjustment system)

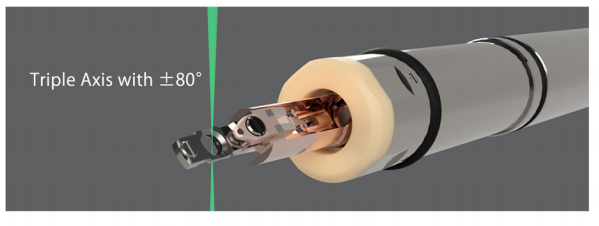

Product appearance

know-how information

Application example
