Product Details
The AMC330-LZ2 active magnetic field control system measures the magnetic field variation in any direction through a high-sensitivity magnetic field sensor and a digital controller, and suppresses the disturbance of the magnetic field by using a reverse-phase magnetic field generated by the Helmholtz coil. The AMC330-LZ2 active magnetic field control system consists of a coil that generates a magnetic field, a magnetic field sensor, a controller and a power amplifier for SEM, TEM, etc.
Technical specifications
1. Maximum 40-60dB attenuation performance
2. DC magnetic field representative value control + independent feedback control of each axis
3. Control range: ±3μT (adjustable)
4. Control frequency: DC-1kHz
Product appearance

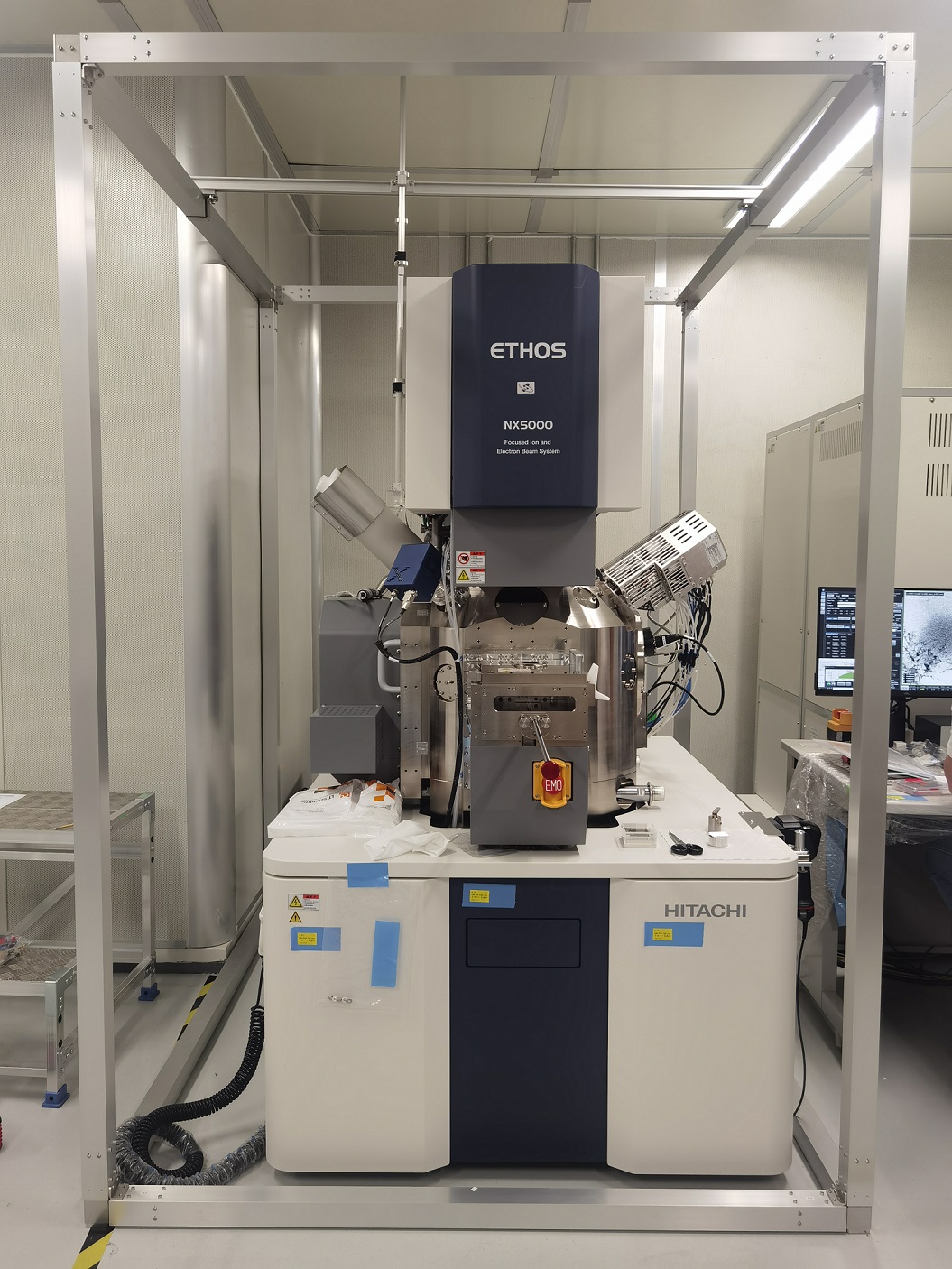

Application example
